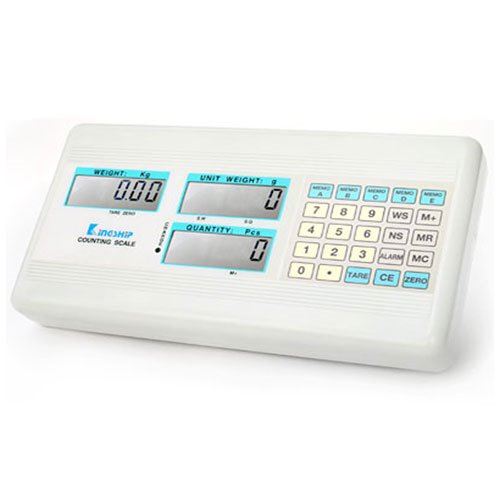

GRC Counting Indicator

The GRC-IN Series counting indicator is an accurate and precise scale with up to 1/15000 display resolution. This model is equipped with 5 direct PLU for unit weight setting, up to 99 data accumulation and 23 data recall for the operator’s conveniently use. This digital indicator equipped with High/Low weight alarm and quantity limit alarm functions. It is a perfect counting scale for industrial application.

Optional Device:
• LCD Backlight
• RS-232 or Relay Output Interface
• Adjustable regulator

Compatible structure:

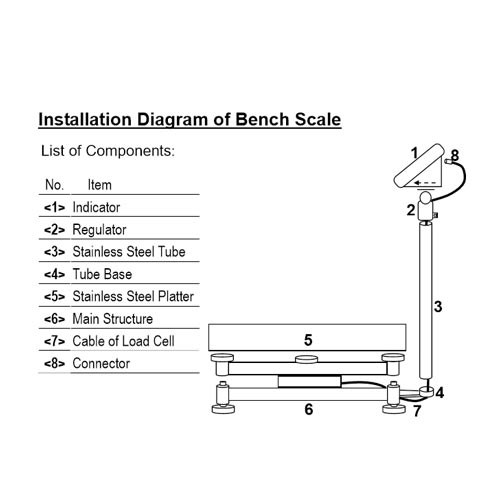

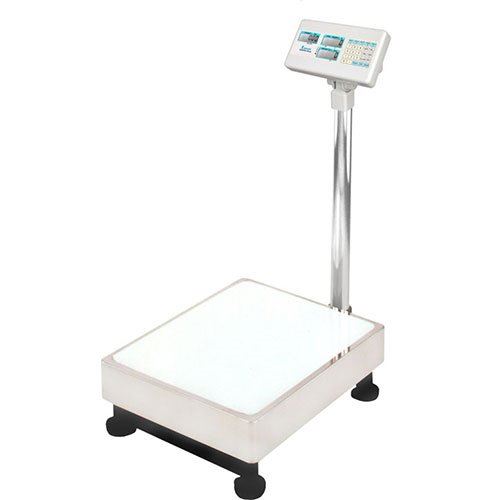

• Platform scale structure
• Floor scale structure

分享到

 Features

• 17.5mm Front-Side LCD Display

• 5 direct PLU for unit weight setting

• Counting Operation by sample-quantity or unit weight

• Up to 99 data accumulation Function and 23 data recall

• Quantity Alarm setting

• Weight Checking Function (Hi / Low Limit setting)

• Give-Change Function

• Energy-Saving Function

• Low Power and Charging Status Indication

• Stainless Steel Platter

 Specifications

Model/Capacity

Model

Capacity

Division

Division

Division

GRC-IN-60

60kg

20g

10g

5g

GRC-IN-150

150kg

50g

20g

10g

GRC-IN-300

300kg

100g

50g

20g

GRC-IN-600

600kg

200g

100g

50g

Display

6,6,7 digits, LCD (18mm / 0.7")

Keyboard

25 keys

Preset Memory Keys

8 keys

Weighing Units

 kg / lb / Oz / 100g

Stabilization

3 sec

Tare Range

50% of full scale capacity

Calibration

External calibration

Operating Environment

Temperature : -10 °C ~ 40 °C (14 °F ~ 104 °F)
Humidity: < 80%

Power Source

DC: 4Ah/6V Rechargeable Battery
(160 hours without Backlight)
AC: 110V or 220V ± 10%, 60Hz/50Hz

Overall Dimensions

Scale: 300mm x 330mm x 120mm (WxDxH)
Platter: 300mm x 240mm (WxD)

Packing

Shipping Carton: 6units/CTN; 4.9CUFT
N.W.: 15.40kg / G.W.: 20.66kg



♦ Place of Origin: MADE IN TAIWAN
